Images from April 28
The images below are a mix of chassis pics and painting pics
|

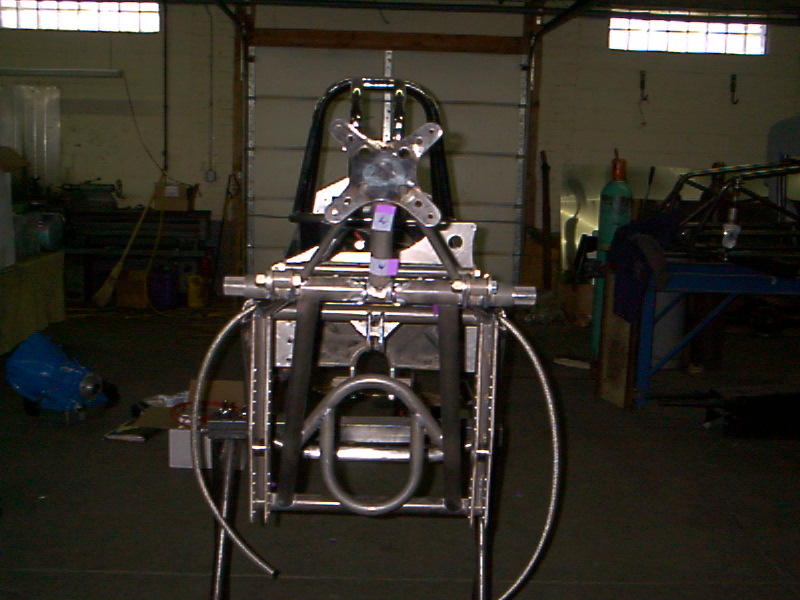

Back of Chassis
As you can see the car is approaching its final stages. The shock mounts are in the parachute mount is on and the drive shaft loop is in. Just a few more little things and the chassis is ready for powdercoat. |

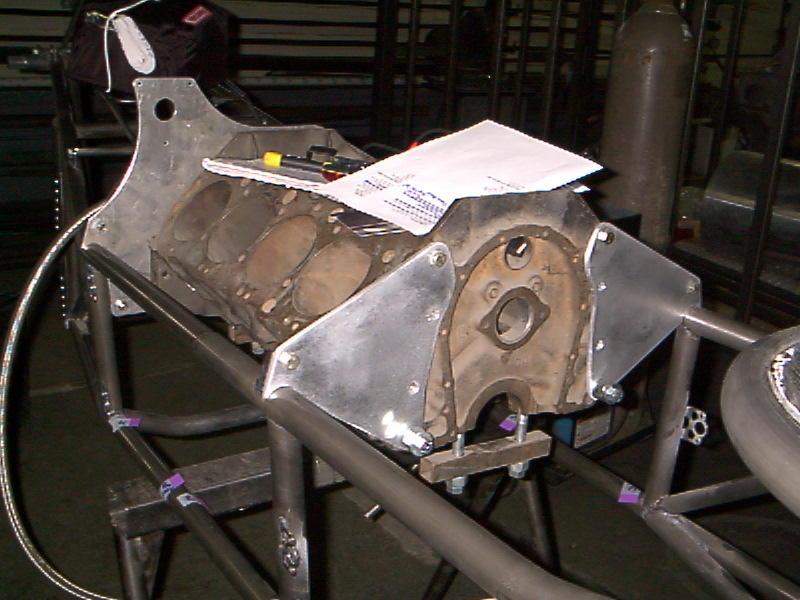

Dummy block is in
The motor plates are made and now holding the dummy block in. The rear motor plate is shown with the coil mount built into the plate. |
Brake Pedal
As you can see the brake pedal mount is all 1 unit which makes for easy movement of the pedals |

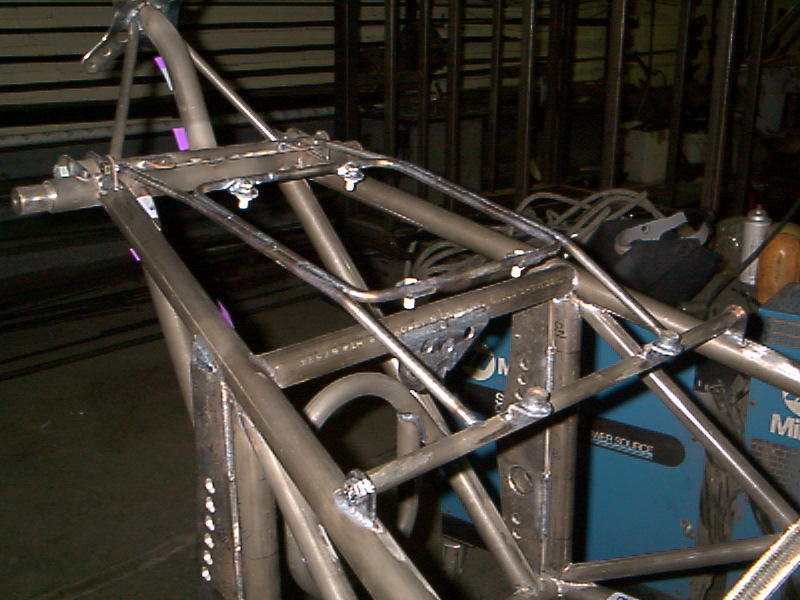

Radiator/transcooler mount
The trans cooler will be mounted below the radiator so the radiator fan will pull the air through the trans cooler. The bracketry was designed so it can flip up and out of the way when working on the back of the motor or trans. |

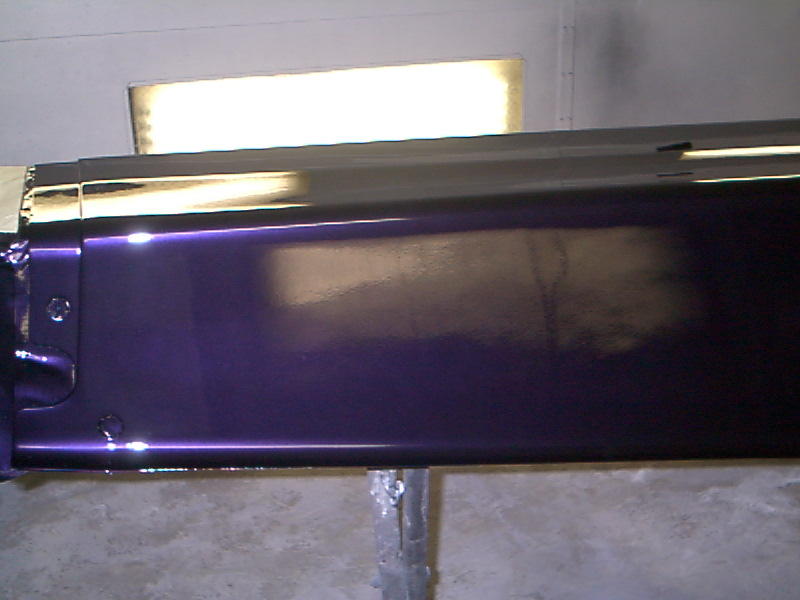

Purple
The purple that I have made is very bright and shiny in the sun but at night will show as black in order to not be seen in night time racing situations |

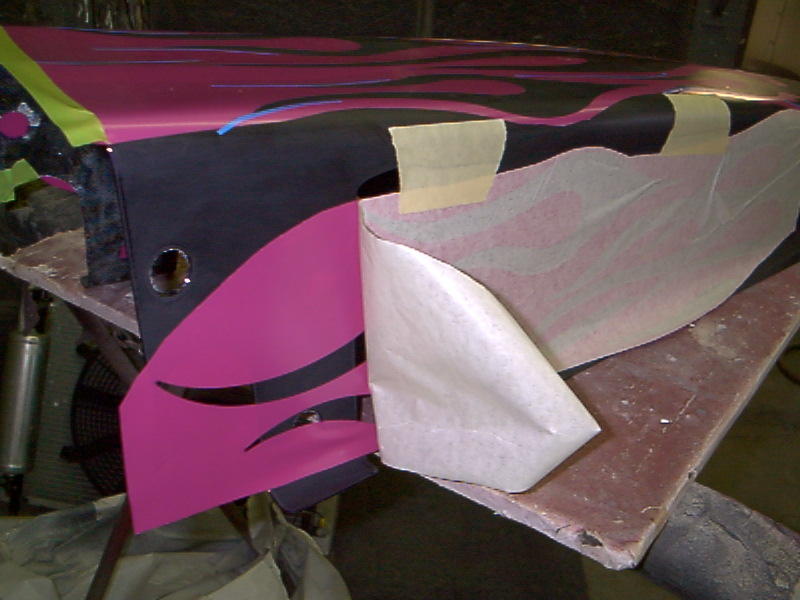

Ghost Flames Mask
Superior graphics has made an entire set of vynil sticker stencils so we can reduce taping and masking time between colors |

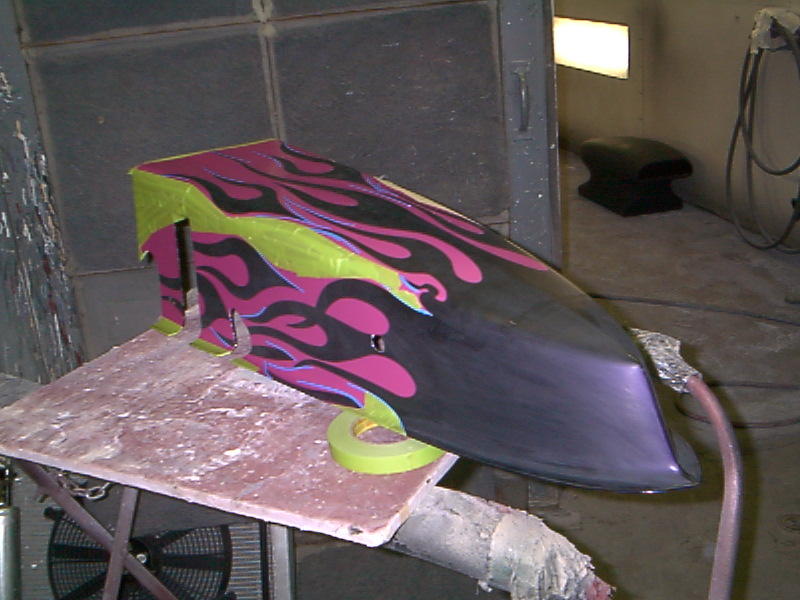

Flames ready for paint
Now that the stencil is on we just apply the pearl to the mask and the nose in order to get the flames in the desired location |
